LTPS log processors (log rip saw)

Woodlandia Log Through Pass Sawmills (LTPS-machines) are intended for processing of small and medium diameter softwood and hardwood raw barked stems into dimensional lumber or custom boards.

These machines can be installed in a shop or in a field under an awning or in a shed.

LTPS-machines are efficient solution for:

  • businesses needed to saw big amount of small diameter raw stems (pls refer to specification below for max raw stem diameter)
  • businesses specializing in sawing of hardwoods into boards for furniture industry and door/window applications
  • loggers who want to recover lumber from small diameter stems efficiently in a job site
  • businesses utilizing beetle or fire killed stems



Specification


 LTPS-150E
(descendant of LTPS-125E)		 LTPS-260
Picture  Woodlandia log rip sawing machine Woodlandia rip-sawing machine LTPS-260
Principles

1 pass rip log sawing

LTPS-125E log processor

2 passes are required:







LTPS-260 1st passLTPS-260 2nd pass
Max butt log diameter 9" (230 mm) 10¼" (260 mm)
Min top log diameter 4" (100 mm) 4¾" (120 mm)
Min log length 78" (2 m) 60" (1.5 m)
Max log length 12ft (3.67m) unlimited
Max height of radial sawing 5 7/8" (150 mm) 13¼" (340 mm)
Sawing frequency 2000 rpm 2025 rpm
Dia of radial saw blades (250-300 mm) (300-350 mm)
Number of radial saw blades per sawing spindle one spindle: 1-6 two spindles: 2-5 on each
Max distance between blades on sawing spindle 8" (200 mm) 11¾" (300mm)
Feeding speed 20, 39, 52 ft/min (6, 12, 16 m/min) 13, 20, 26, 39 ft/min (4, 6, 8, 12 m /min)
Power of radial saw motor 40HP (30 KW) 2 x 40HP (2 x 30KW)
Profiling spindles motors power 2 x 15HP (2 x 11KW)
2 x 10HP (2 x 7.5KW)		 no such device
Feeding motor power 1.5HP (1.1 KW) 2 x 1.5HP (2 x 1.5KW)
Length 12ft (3.67 m) 20ft (6m)
Width 6ft (1.68 m) 6ft (1.7m )
Height 7ft (2 m) 7ft (2.1 m)
Weight 6600lbs (3000 kg) 6200lbs (2800 kg)




Productivity


Productivity of LTPS machine depends on following factors:

  • infrastructure and logistics (in-feed/out-feed automation)
  • wood species
  • boards layout: number of circular saw-blades installed & max height of boards to cut
  • tool sharpness
  • moisture content of the wood



 Here are tables describing typical layouts (cutouts) and productivity of LTPS-150E:


IMPERIAL









# Raw Log Parameters Lumber Specs Number of boards per log Boards volume,bf Productivity by boards Total productivity

Top dia, inch Length, ft Volume, bf Height, inch Width, inch Length, ft
1 4.72 9.19 14.832 0.63 4.13 8.86 3 5.7634 38.90% 54.90%
0.63 3.15 7.22 2 2.3731 16.00%












2 5.51 9.19 20.341 0.63 4.13 8.86 4 7.6703 37.70% 51.00%
0.63 3.15 8.2 2 2.7122 13.30%












3 6.3 9.19 27.122 0.63 4.13 8.86 5 9.6197 35.50% 46.30%
0.63 3.15 8.86 2 2.9241 10.80%












4 6.3 9.19 27.122 0.63 4.13 8.86 6 11.5267 42.50% 42.50%



















METRIC









# Raw Log Parameters Lumber Specs Number of boards per log Boards volume, m3 Productivity by boards Total productivity

Top dia, cm Length, m Volume, m3 Height, mm Width, mm Length, m
1 12 2.8 0.035 16 105 2.7 3 0.0136 38.90% 54.90%
16 80 2.2 2 0.0056 16.00%











2 14 2.8 0.048 16 105 2.7 4 0.0181 37.70% 51.00%
16 80 2.5 2 0.0064 13.30%











3 16 2.8 0.064 16 105 2.7 5 0.0227 35.50% 46.30%
16 80 2.7 2 0.0069 10.80%











4 16 2.8 0.064 16 105 2.7 6 0.0272 42.50% 42.50%









For such layouts an average output is 5085 feet board (12 cubic metes) of lumber per work shift.
Average processing speed is: 39 ft/min (12m/min) in summer time, 19 ft/min (6 m/min) in winter time (if machine works outside under an awning or in a shed).






Videos and pictures

LTPS-150E (LTPS-125E) LTPS-260

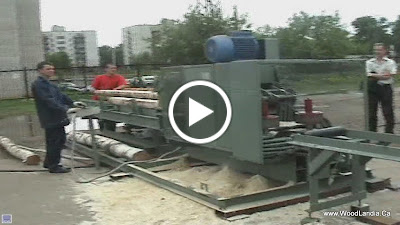

 Click on picture just below to watch video clip
demonstrating LTPS-260 performing rip-sawing operation
(the video will open in new window)





This is a link to a slide-show demonstrating
economical installations of LTPS-150 (125E) machines
(please click on a picture below)
Woodlandia LTPS-150 installation

  Woodlandia rip sawing machine LTPS-260





Terms

  • Our price lists our available for download, click here
  • 50% upfront, 40% before delivery, 10% during 1 month after delivery
  • For delivery quotation please inquire (postal or ZIP code of a destination is required)
  • LTPS machines are built by special orders only (usually no inventory)
  • Please allow 60-120 days for manufacturing and delivery
  • 1 year limited warranty covering bearings, electrical components, motors is provided for customers in USA & Canada
  • By special order NEMA-compatible motors can be installed on LTPS machines (by default all LTPS machines electrical parts are for European 3phase 380V, 50Hz power)
  • CSA/ULC/CE certification is optional




Canadian dollar Please inquire about exact cost in CAD.
Since Canadian dollar is subject to change due to fluctuations of USD/CAD exchange rate, price in Canadian Dollars will be determined basing on buying USD rate defined by TD Canada Trust Bank.







For detailed leasing information please click here
